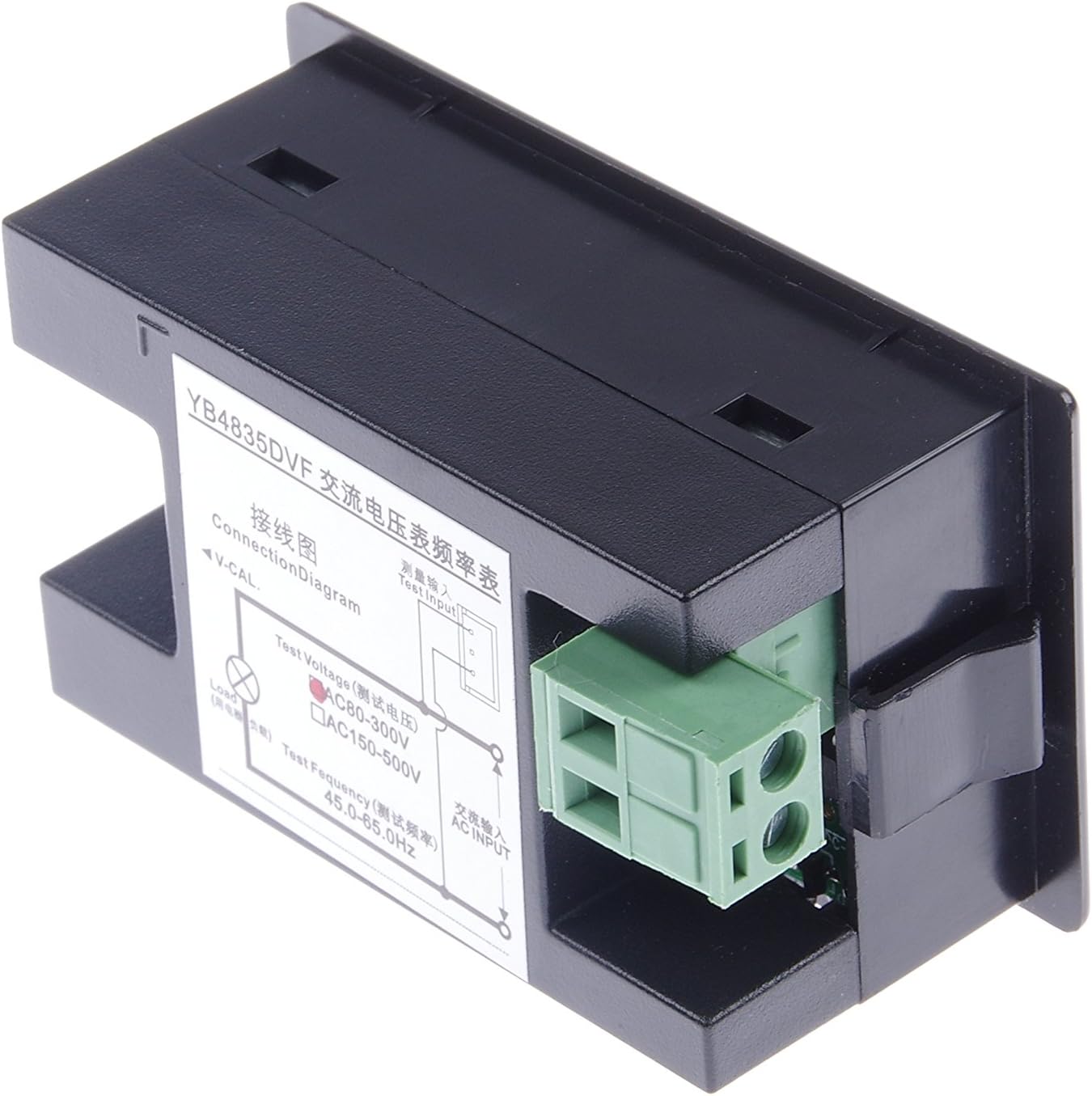

Digital AC Voltmeter AC 80-300V Frequency Counter 45.0-65.0Hz LCD Display Voltage Frequency 2 in 1 Meter Tester
Product details
| Management number | 234141724 | Release Date | 2026/06/27 | List Price | US$6.40 | Model Number | 234141724 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product Parameters: Measuring range of the voltmeter ： AC 80-300V . Accuracy: 1%. Display: LCD display, blue backlight, black characters. LCD Size: 48*24.5mm. AC frequency measuring range: 45.0-65.0 Hz, minimum resolution -0.1Hz. AC voltage measuring range: AC80-300V: minimum resolution --1V. Measurement speed: about 2 times per second. Dimensions : 70x40x30mm(LWH). Mounting Holes : 68*38mm(LW). Working temperature: -10 ~ + 50 ℃ Humidity: 10 to 80% (non-condensing) Working pressure: 80 ~ 106kPa Note: This table uses the principle of capacitor step-down design, because the higher the frequency the smaller the impedance of the capacitor, it is not suitable for use in high-frequency electronic speed control, non-mains frequency sine wave, or other high-frequency components. Packge Included: 1pcs Digital AC 80-300V Voltmeter
- Digital AC 80-300V Voltmeter and Frequency Meter, you can measure both AC voltage and frequency in one voltmeter.
- This voltmeter uses two-wire design, wide measurement range, wiring is simple and convenient.
- Accuracy: 1%, minimum resolution: 1V.
- AC frequency measuring range: 45.0-65.0 Hz, minimum resolution -0.1Hz.
| UPC | 603983633250 |
|---|---|
| ASIN | B01M1J97QM |
| Color | Black |
| Model | LYAC30380VF |
| Brand Name | LM YN |
| Style Name | Digital |
| Unit Count | 1.0 Count |
| Item Weight | 0.11 Pounds |
| Part Number | 43237-2 |
| Manufacturer | LM YN |
| Power Source | Corded Electric |
| Item Dimensions | 2.76 x 1.57 x 1.18 inches |
| Measurement Type | Voltmeter |
| Included Components | terminal block |
| Warranty Description | Manufacturer's One-year After-sale Warranty. |
| Lower Temperature Rating | 15 Degrees Fahrenheit |
| Upper Temperature Rating | 120 Degrees Fahrenheit |
| Maximum Operating Voltage | 300 Volts (AC) |
| Minimum Operating Voltage | 80 Volts (AC) |
