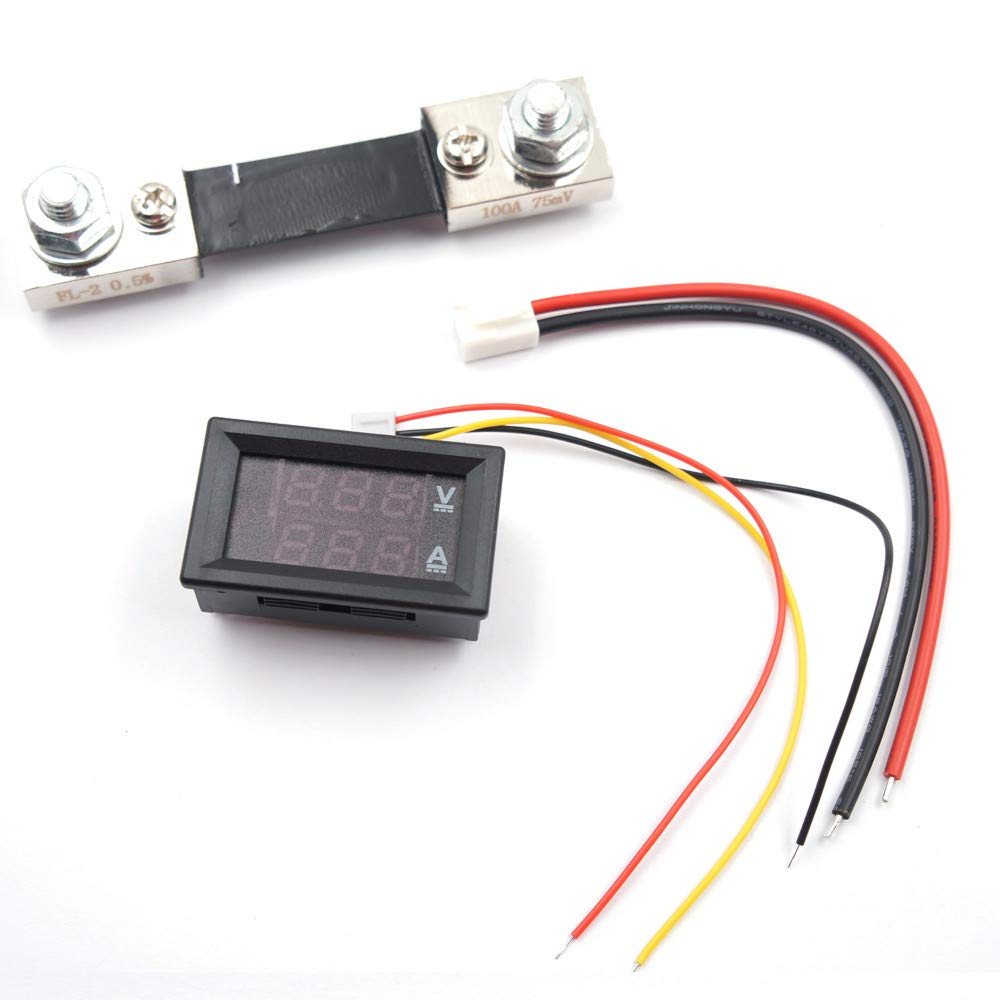

JacobsParts DC 100V 100A Voltmeter Ammeter Dual LED Display Panel Volt Guage Amp Meter Voltage Current Tester with Shunt
Product details
| Management number | 234063770 | Release Date | 2026/06/27 | List Price | US$5.00 | Model Number | 234063770 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Simultaneously monitor DC voltage up to 100V and current up to 100A • A heavy duty 75mΩ external shunt handles the currentAuto ranging 0.01V 0.01A precision • ±0.1% voltage tolerance • ±1% current tolerance • Working current: <20mA • Refresh rate: 300msSize: 48x29x22mm • Hole size: 46x27mm • Operating Temp: -10℃ - 65℃ • DC only, not for use with AC • 4-28V supply voltageThere are potentiometers on the back of the unit to calibrate voltage and current. In order to get accurate readings, it is necessary to calibrate against a known voltage and current on first use. The meter may display 0 current until it has been calibrated.Note: If the meter supply voltage (thin red wire) is the same as the load, then it must only be used with 4-28V or the meter may be damaged
- Simultaneously monitor DC voltage up to 100V and current up to 100A • A heavy duty 75mΩ external shunt handles the current
- Auto ranging 0.01V 0.01A precision • ±0.1% voltage tolerance • ±1% current tolerance • Working current: <20mA • Refresh rate: 300ms
- Size: 48x29x22mm • Hole size: 46x27mm • Operating Temp: -10℃ - 65℃ • DC only, not for use with AC • 4-28V supply voltage

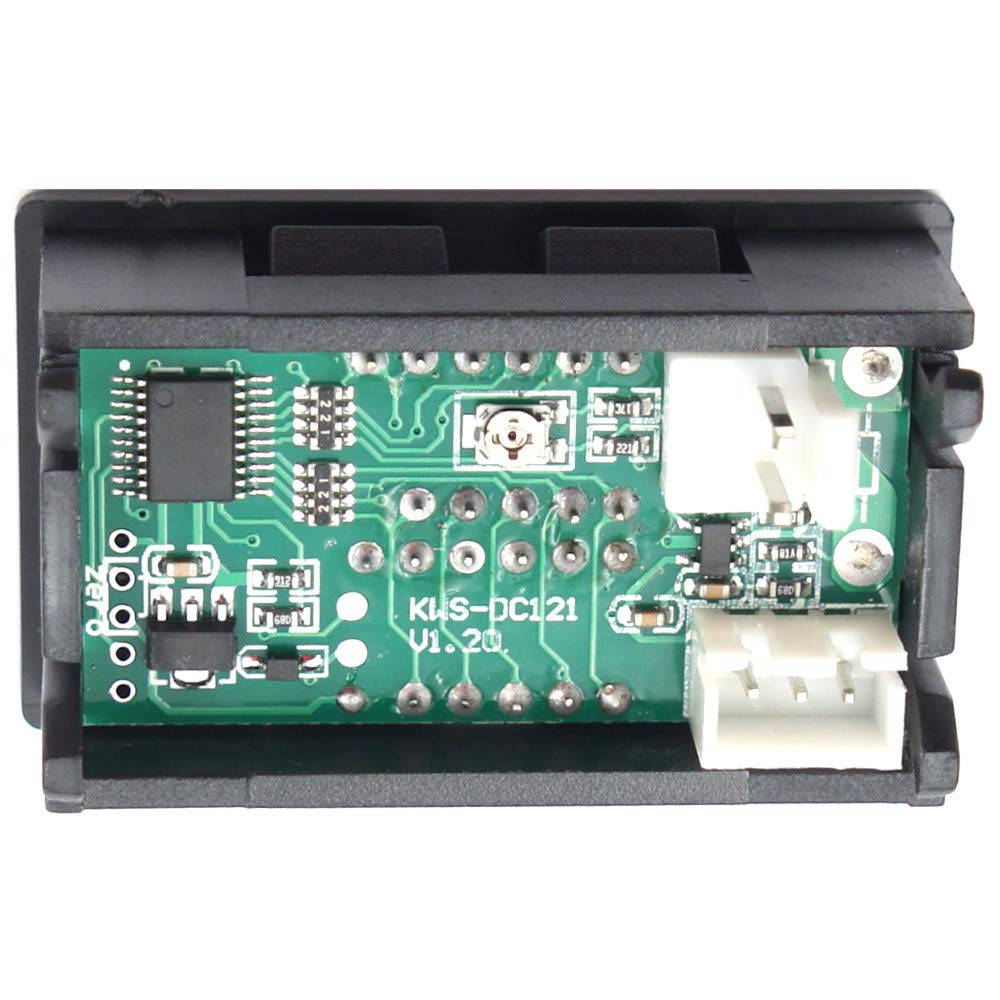

- There are potentiometers on the back of the unit to calibrate voltage and current. In order to get accurate readings, it is necessary to calibrate against a known voltage and current on first use. The meter may display 0 current until it has been calibrated.
- Note: If the meter supply voltage (thin red wire) is the same as the load, then it must only be used with 4-28V or the meter may be damaged
| UPC | 845832032214 |
|---|---|
| ASIN | B092KQ88RZ |
| Color | Red |
| Model | VOLTMETER-F |
| Brand Name | JacobsParts |
| Style Name | Handheld |
| Unit Count | 1.0 Count |
| Item Weight | 0.24 Kilograms |
| Part Number | VOLTMETER-F |
| Manufacturer | JacobsParts |
| Power Source | Battery Powered |
| Measurement Type | Ammeter, Voltmeter |
| Included Components | Meter, Wires, Shunt |
| Upper Temperature Rating | 65 Degrees Celsius |
| Minimum Operating Voltage | 4 Volts (DC) |
