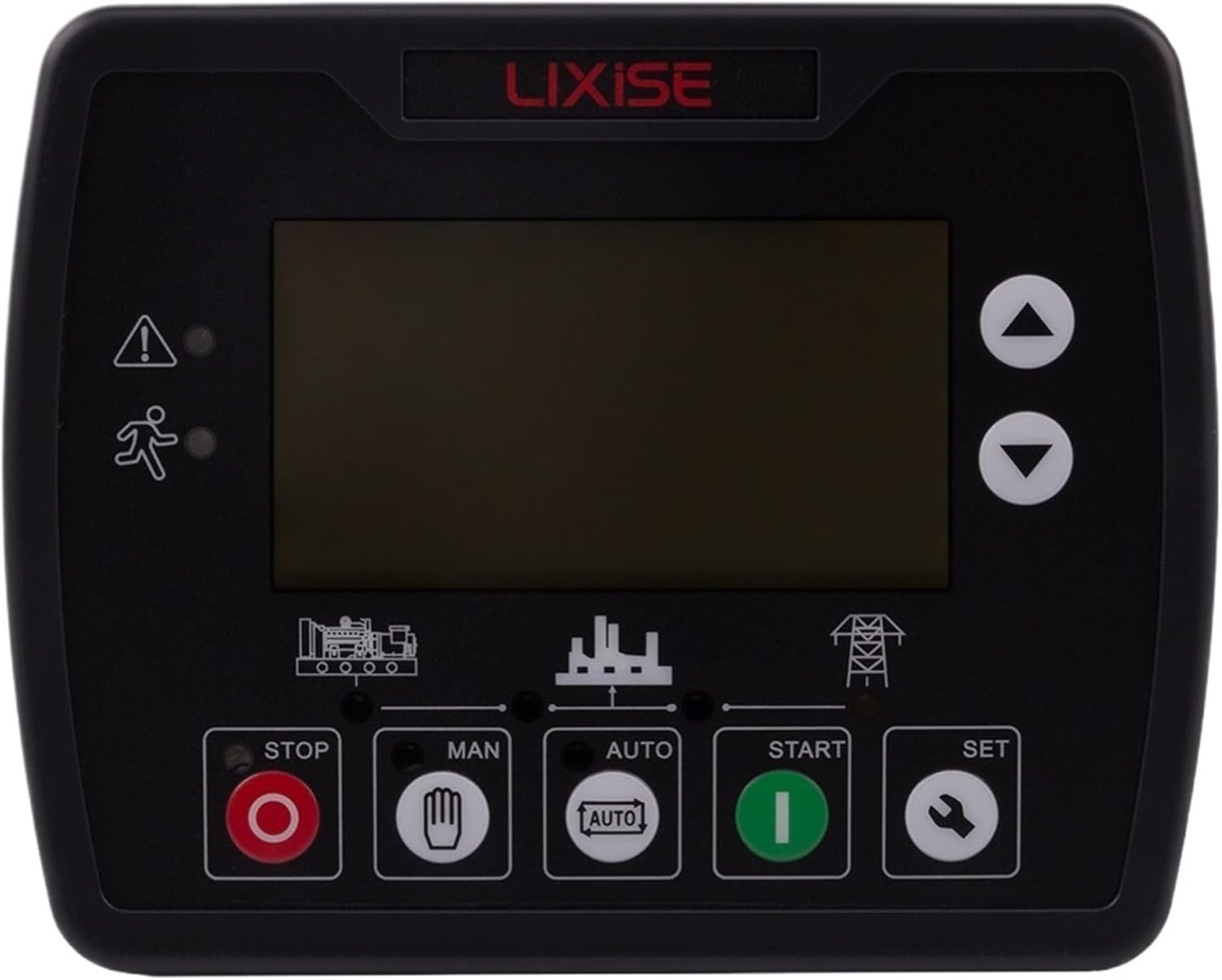

LXC3110 LXC3120 auto Start Generator Controller Small Diesel alternator Control Board Pannel Generator Part(LXC3110)

Electronic Speed GovernorsIntroductionLXC3110 generator controller power plant automation controller integrating digital, intelligent and network technology, diesel generator sets for a single automation and monitoring system, automatic generator start / stop, data measure and alarming, and "three remote" (to be equipped with RS485 module) function. Controller with large-screen display, Chinese, English, Spanish and Russian optional interface with operation easy and reliable operation. Parameters to achieve a variety of precision measurement, setpoint adjustment, and threshold setting and other functions, the controller of all parameters can be adjusted from the controller front panel, or by using a PC via USB, RS232 interface programming, adjustment and monitoring. Its compact, simple wiring, high reliability, and can be widely used in all types of generator automation systems.automation systems.ItemsContentsWorking VoltageDC8. 0V to 35. 0V, Continuous Power Supply.Overall Consumption<;3W(Standby mode: 2W)AC voltage Input: 3 Phase 4 Wire 15V AC - 360 V AC (ph-N)2 Phase 3 Wire 15V AC - 360 V AC (ph-N)Single phase 2 Wire 15V AC - 360 V AC (ph-N)3 Phase 3 Wire 30V AC - 620 V AC (ph-ph)Alternator Frequency50 Hz /60HzSpeed Sensor Voltage1.0V to 24V (effective value) Speed Sensor Frequency10,000 Hz (max)Start Relay Output5A DC28V power supply Programmable Relay Output 15A DC28V power supplyProgrammable Relay Output 25A DC28V power supplyProgrammable Relay Output 35A DC28V power supplyProgrammable Relay Output 45A AC250V voltage-free output Programmable Relay Output 5 5A AC250V voltage-free output Overall Dimensions 143mm x 115mm x41mmPanel Cutout110mm x 90mmCT Secondary Current5A (rated) Working Condition Temperature: (-25~70)ºC; Humidity: (20~93)%RHStorage ConditionTemperature: (-25~70)ºC IP55:When waterproof rubber seal installed between the controller and panel fascia.Protection Level IP42:When waterproof rubber seal is not installed between the controller and panel fascia.Object: input/output/powerInsulation IntensityQuote standard: IEC688-1992Test way: AC1.5kV/1min leakage current:3mAWeight530g
